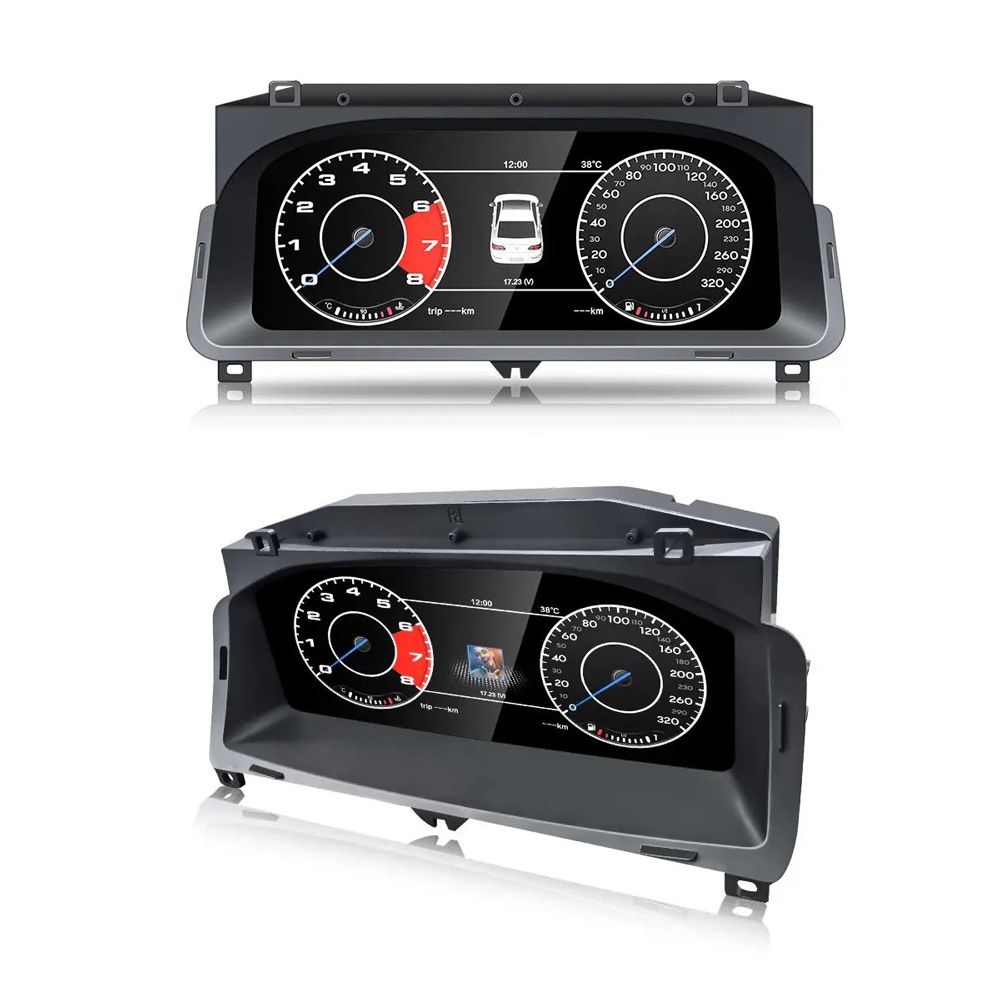

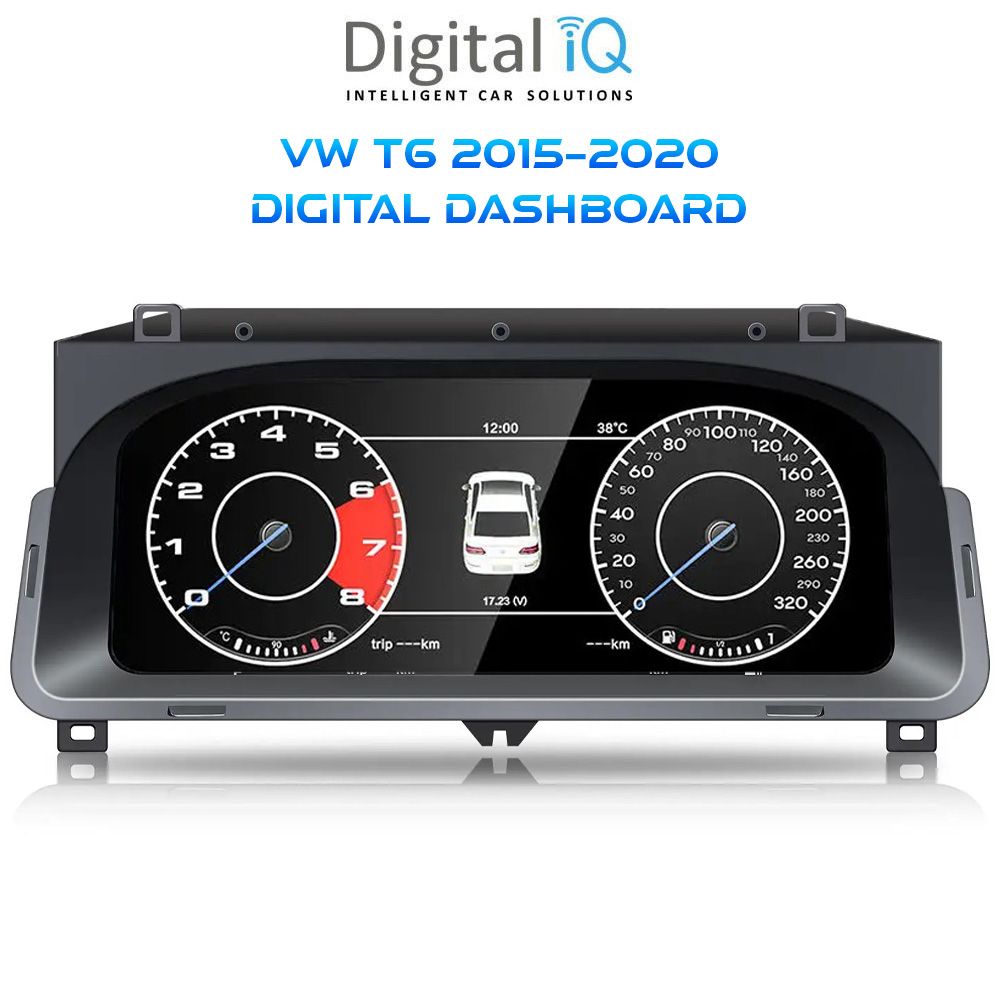

Digital Instruments Cluster (Dashboard)
Original Analog Instrument Cluster Upgrade

• Intelligent control: Intelligent monitor can show your car informations in real time.
• Customization: Easily and widelly customizable.
• Eight view mode: intelligent control of the whole car.
  1. Classic mode,
  2.Exercise mode,
  3.Digital mode,
  4.Gear and speed mode,
  5.Consumption and mileage,
  6.Economic mode,
  7.Driving assistance mode,
  8.Navigation mode.
• 12.3inch Screen 1920×720 HD IPS screen with 60fps.
• Linux Operating system.
• Supporst Mobile phone wireless projection screen.
• Supports original car’s Bluetooth phone call or music play.
• &
• WIFI remote upgrade.
• Easy Installation.

• CPU: RENESAS Car gauge chip —R-CAR M2N R8A77930, Arm dual core 1.5GHz, working temperature – 40 ° C ~ + 105 ° C.
• GPU is imaging’s powervr544 dual core 312MHz, supports true 3D, pixel fill rate 1250m pixel / s, floating-point operation 20gflop / s.
• Dual LVDS output or RGB output, support resolution 1920* 720@60fps.
• Three CVBS inputs.
• HDMI input or LVDS input 1920* 720@60fps.
• Supports 2-way SD card interface.
• 2-way USB 2.0 interface.
• Audio in / out.
• 2-way can.
• 4-way serial port, 2-way I2C, 2-way SPI
• Length: 454mm.
• Width: 234mm
• Height: 230mm.
• Weight: 2kg
